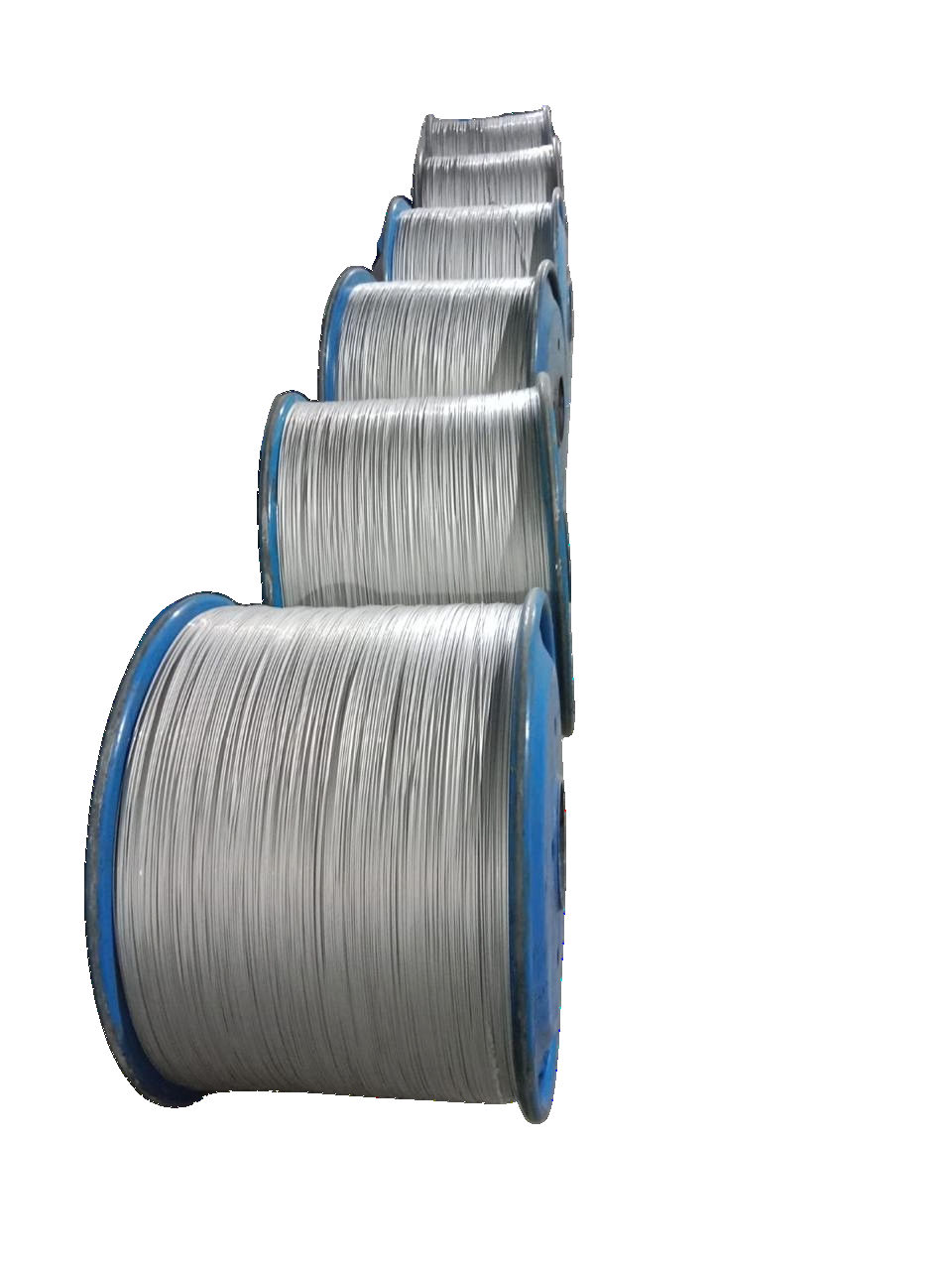

Tinned Wires
Single Tinned Wire / Single Core Cable
High-precision tin-coated single conductors engineered for superior solderability and oxidation resistance.
Tekla Energy Certified Quality
Need a Custom Specification?
We manufacture to customized diameters, stranding lay geometries, and special packaging requirements.
Or email: md@teklaenergy.in
Product Overview
Tekla Energy is a leading manufacturer, exporter, and supplier of a wide assortment of Single Core Tinned Wire and Cables. The offered wire is made in compliance with set industrial standards and widely used in varied electrical fittings for power transmission. Every batch is stringently examined on varied quality parameters by our experts before delivery to meet the vast requirements of our clients.
Technical Specifications
| Base Material Grade | CU-ETP / OFE (Electrolytic Copper / Oxygen-Free) |
| Surface Coating | Pure Tin (Sn) electroplated / hot-dipped |
| Size / Diameter Range | 0.120 mm to 2.5 mm |
| Compliance Standards | IEC 60332-1-2 • IS 10810-53 • IS 9968 • BS 6360 |
| Packaging Formats | DIN 160, DIN 250, DIN 400, DIN 630, Basket Spools |
Standard Spool & Bobbin Packaging Matrix
| Wire Size | Coil | Basket | DIN 630 mm | DIN 400 mm | DIN 250 mm | DIN 160 mm |
|---|
Key Performance Features
- ✓Flame retardant testing as per IEC 60332-1-2
- ✓Flammability test compliance as per IS 10810-53
- ✓Superior tin adhesion preventing flaking during twisting
- ✓Consistent diameter tolerance across continuous spooling
- ✓Enhanced solderability for precision electronic connections
Target Applications
- ›Power transmission fittings & panels
- ›Automotive wire harnesses
- ›Control panels & switchgear assemblies
- ›Consumer electronics & appliance wiring
- ›Telecommunications and signal transmission
